Area of Rescue 40-Station IP Command Unit
The AOR-IP-40 Command Unit is an IP-based system accommodating up to 40 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP
- Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.
The AOR-IP-40 Command Unit is an IP-based system accommodating up to 40 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP
- Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.
Area of Rescue Analog Station, Flush Mounted
The AOR Analog Call station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Vandal resistant stainless steel faceplate and metal button
- Phone line powered: no power supply or battery backup needed
- Push button once to call, then speak hands-free
- Two (2) LED indicators for hearing impaired (calling, answered)
- Built-in auto-dialer can dial up to five (5) numbers. If first number does not answer or is busy, dials second number. If second number does not answer or is busy, dials third number—and so on.
- Auto-answer on inbound calls allows security to monitor and initiate calls with the call station
- Automatically inform attendant of the location of call station through recorded message that plays at the beginning of the call
- Optional relay output
The AOR Analog Call station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Vandal resistant stainless steel faceplate and metal button
- Phone line powered: no power supply or battery backup needed
- Push button once to call, then speak hands-free
- Two (2) LED indicators for hearing impaired (calling, answered)
- Built-in auto-dialer can dial up to five (5) numbers. If first number does not answer or is busy, dials second number. If second number does not answer or is busy, dials third number—and so on.
- Auto-answer on inbound calls allows security to monitor and initiate calls with the call station
- Automatically inform attendant of the location of call station through recorded message that plays at the beginning of the call
- Optional relay output
Area of Rescue 120-Station IP Command Unit
The AOR-IP-120 Command Unit is an IP-based system accommodating up to 120 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP
- Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.
The AOR-IP-120 Command Unit is an IP-based system accommodating up to 120 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP
- Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.

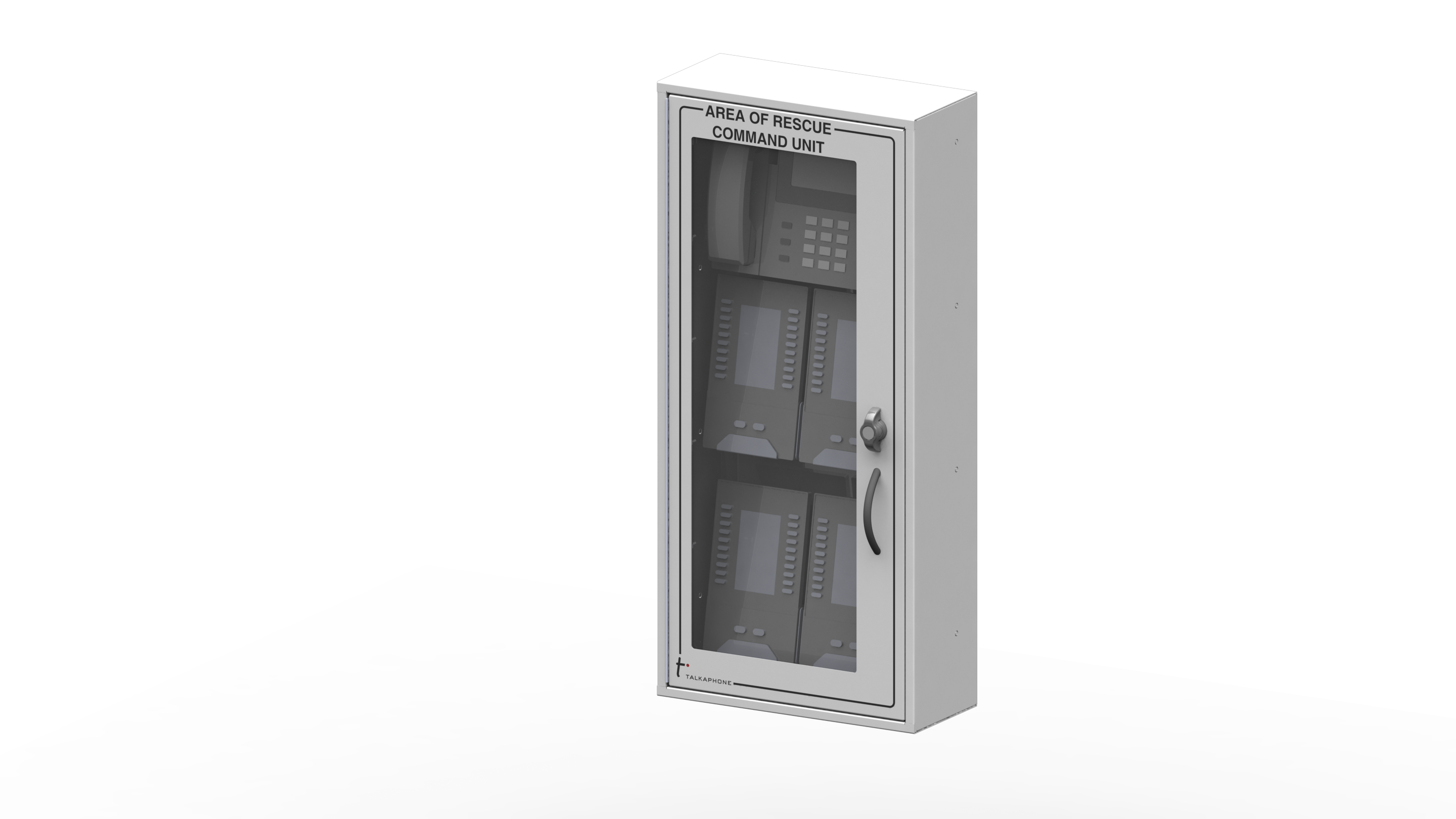

Area of Rescue 160-Station IP Command Unit
The AOR-IP-160 Command Unit is an IP-based system accommodating up to 160 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Area of Rescue IP Command Units are fully compliant with IBC (2015) §1009, ADAAG §7, ICC A117.1 Ch. 7, and NFPA 72 (2016) §24.10.
- An ideal solution for new construction, rehabilitation, redevelopment, or modernization (i.e., infrastructure upgrade) projects
- Supports up to 160 ADA compliant area of rescue stations
- Supports multiple on-premise answering points (i.e. command units)
- Supports off-site communication to a central monitoring station, a communications center, or 911 (requires analog trunk line or SIP trunk)
- Supports up to four (4) analog trunk (PSTN) lines or up to fifty (50) SIP trunk accounts (requires SIP service and Internet connectivity provided by others) for off-site communication
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.
The AOR-IP-160 Command Unit is an IP-based system accommodating up to 160 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Area of Rescue IP Command Units are fully compliant with IBC (2015) §1009, ADAAG §7, ICC A117.1 Ch. 7, and NFPA 72 (2016) §24.10.
- An ideal solution for new construction, rehabilitation, redevelopment, or modernization (i.e., infrastructure upgrade) projects
- Supports up to 160 ADA compliant area of rescue stations
- Supports multiple on-premise answering points (i.e. command units)
- Supports off-site communication to a central monitoring station, a communications center, or 911 (requires analog trunk line or SIP trunk)
- Supports up to four (4) analog trunk (PSTN) lines or up to fifty (50) SIP trunk accounts (requires SIP service and Internet connectivity provided by others) for off-site communication
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.
Area of Rescue Analog Station, Surface Mounted
The AOR Analog Call station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Vandal resistant stainless steel faceplate and metal button
- Phone line powered: no power supply or battery backup needed
- Push button once to call, then speak hands-free
- Two (2) LED indicators for hearing impaired (calling, answered)
- Built-in auto-dialer can dial up to five (5) numbers. If first number does not answer or is busy, dials second number. If second number does not answer or is busy, dials third number—and so on.
- Auto-answer on inbound calls allows security to monitor and initiate calls with the call station
- Automatically inform attendant of the location of call station through recorded message that plays at the beginning of the call
- Optional relay output
The AOR Analog Call station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Vandal resistant stainless steel faceplate and metal button
- Phone line powered: no power supply or battery backup needed
- Push button once to call, then speak hands-free
- Two (2) LED indicators for hearing impaired (calling, answered)
- Built-in auto-dialer can dial up to five (5) numbers. If first number does not answer or is busy, dials second number. If second number does not answer or is busy, dials third number—and so on.
- Auto-answer on inbound calls allows security to monitor and initiate calls with the call station
- Automatically inform attendant of the location of call station through recorded message that plays at the beginning of the call
- Optional relay output

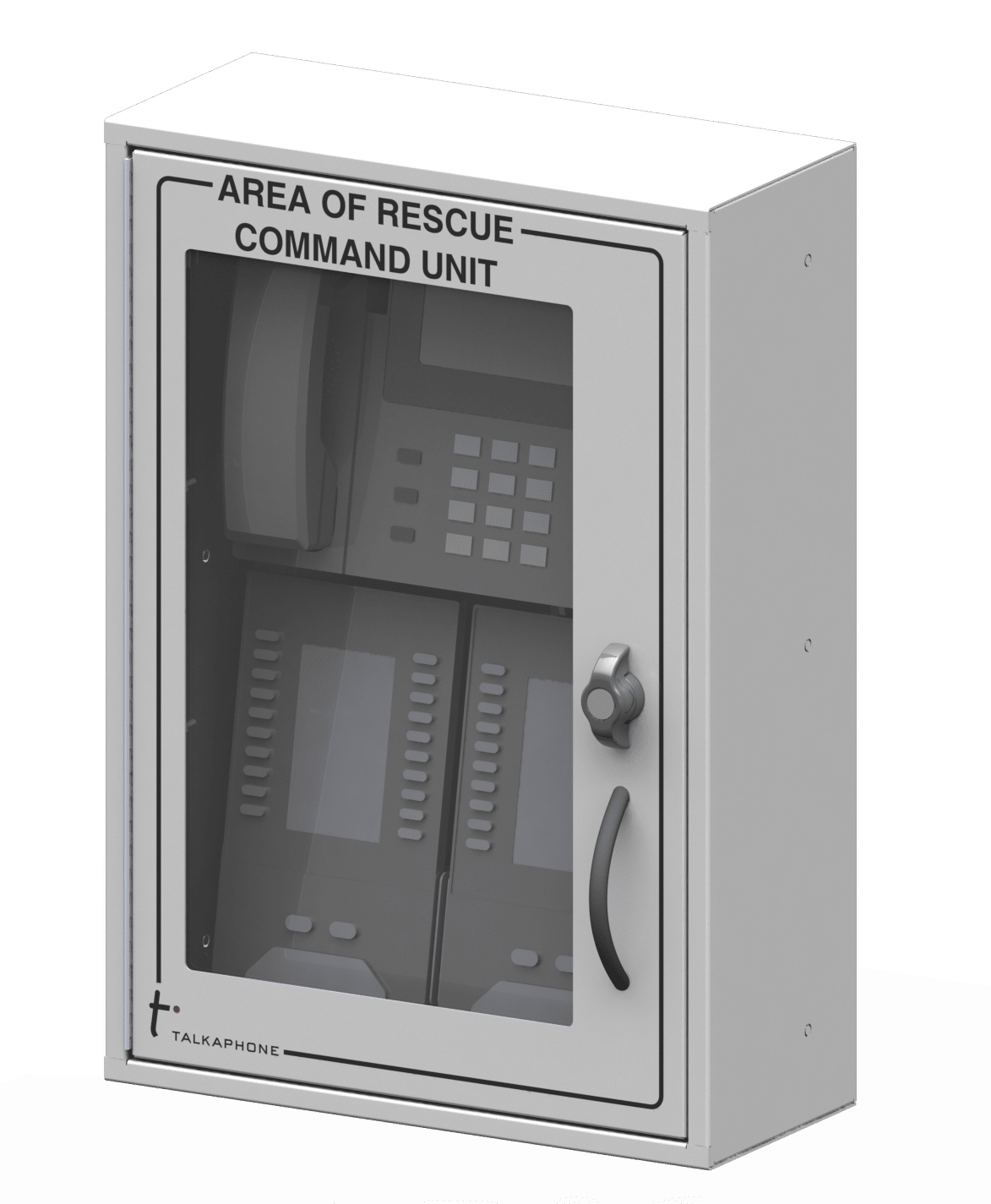

Area of Rescue 80-Station IP Command Unit
The AOR-IP-80 Command Unit is an IP-based system accommodating up to 80 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP
- Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.
The AOR-IP-80 Command Unit is an IP-based system accommodating up to 80 ADA-compliant area of rescue IP call stations. The system offers the capability for multiple IP command units, on-and off-premise communication, and IP network supervision.
- Connect IP Call Stations, IP Command Units, and IP Supervisor to a Local Area Network (LAN)
- Available IP Supervisor automatically and continuously monitors for network pathway integrity between the IP Call Stations and IP
- Command Unit(s). If the network is down or if a network pathway is compromised, a contact closure is provided.
- IP Command Unit provides both an LCD and keys with LEDs to indicate IP Call Station line status (i.e. idle, ringing, or busy)
- Included Uninterruptible Power Supply (UPS) provides power backup in the event of a power source failure
- IP Command Unit can be either surface or flush-mounted. Optional trim ring is available.

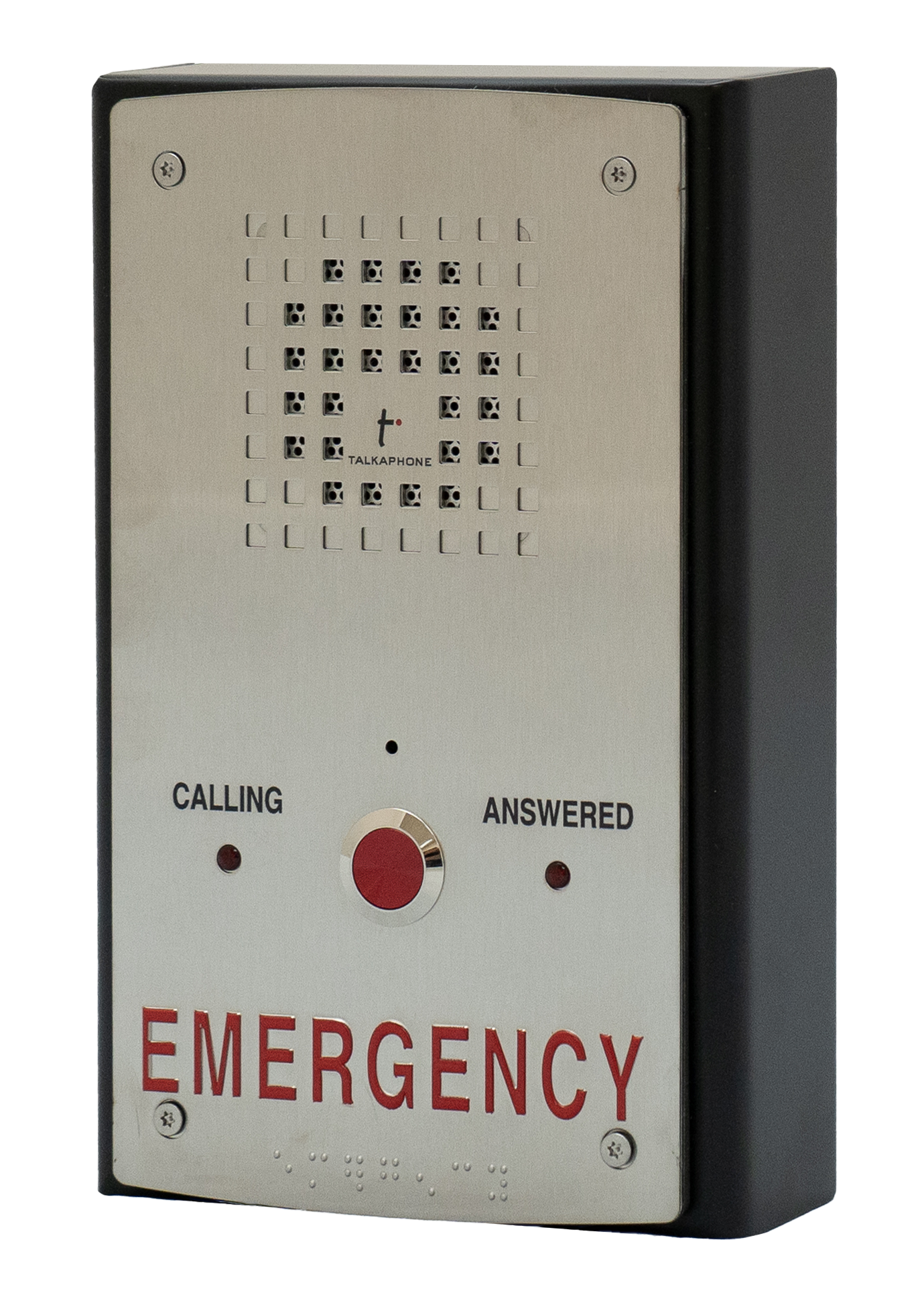

Area of Rescue IP Station, Surface Mounted
The AOR-IP Call Station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR-IP Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Network supervision available when used in conjunction with IP supervisor (Model AOR-IP-SUP)
- Automatically plays back a recorded location message to the local IP Command Unit(not off-site)
- Auto-answers calls initiated at the IP Command Unit
- Exceptional sound clarity during a conversation (over 85dB, configurable)
- Power over Ethernet (PoE, 802.3af) or local 19-27 VDC
- Vandal resistant stainless steel faceplate and metal button
- LED indicator for the hearing impaired
- Push button once to call, then speak hands-free
- Built-in auto-dialer can dial up to six numbers: if the first number doesn’t answer or is busy, dials next number
The AOR-IP Call Station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR-IP Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Network supervision available when used in conjunction with IP supervisor (Model AOR-IP-SUP)
- Automatically plays back a recorded location message to the local IP Command Unit(not off-site)
- Auto-answers calls initiated at the IP Command Unit
- Exceptional sound clarity during a conversation (over 85dB, configurable)
- Power over Ethernet (PoE, 802.3af) or local 19-27 VDC
- Vandal resistant stainless steel faceplate and metal button
- LED indicator for the hearing impaired
- Push button once to call, then speak hands-free
- Built-in auto-dialer can dial up to six numbers: if the first number doesn’t answer or is busy, dials next number

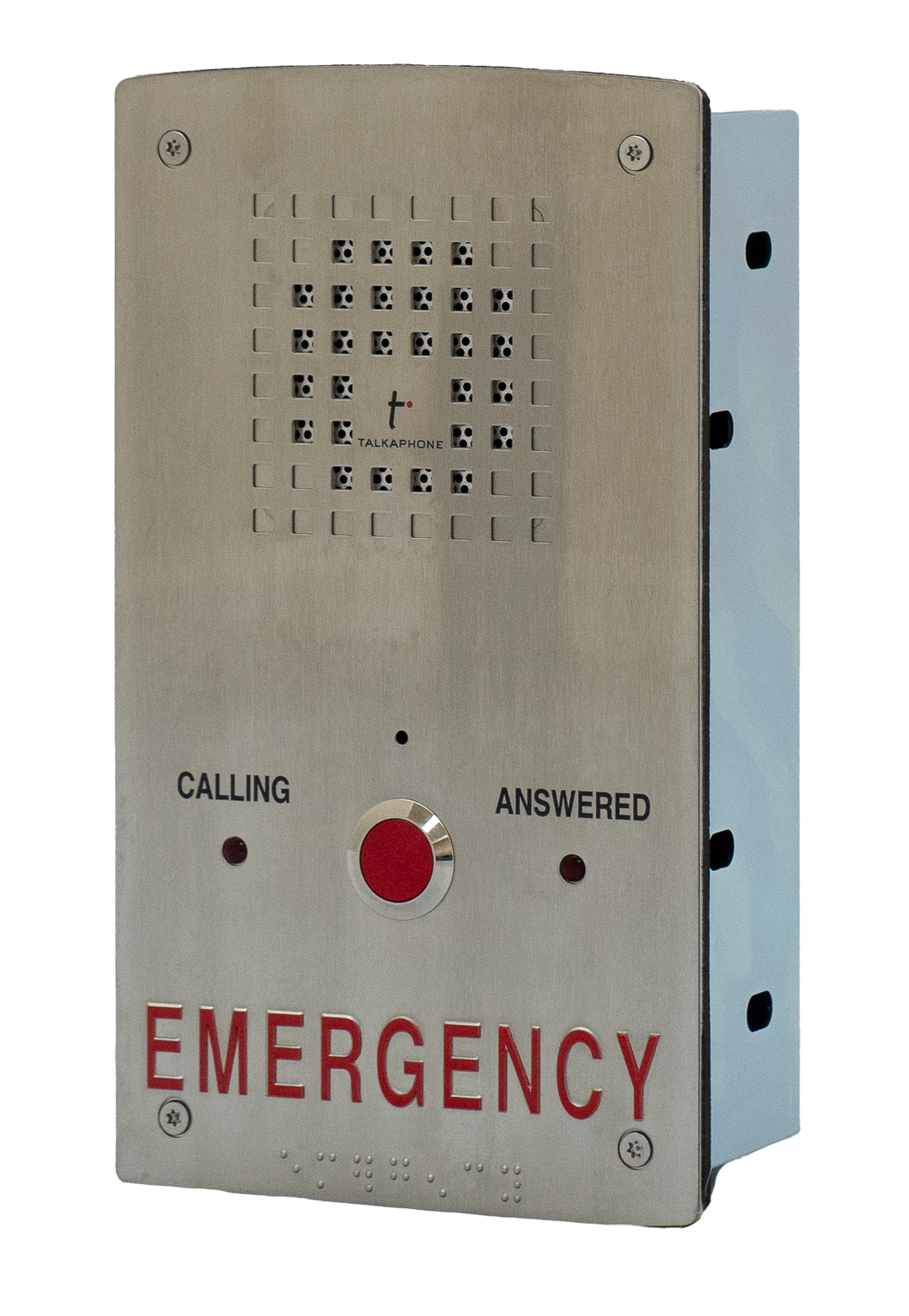

Area of Rescue IP Station, Flush Mounted
The AOR-IP Call Station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR-IP Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Network supervision available when used in conjunction with IP supervisor (Model AOR-IP-SUP)
- Automatically plays back a recorded location message to the local IP Command Unit(not off-site)
- Auto-answers calls initiated at the IP Command Unit
- Exceptional sound clarity during conversation (over 85dB, configurable)
- Power over Ethernet (PoE, 802.3af) or local 19-27 VDC
- Vandal resistant stainless steel faceplate and metal button
- LED indicator for the hearing impaired
- Push button once to call, then speak hands-free
- Built-in auto-dialer can dial up to six numbers: if the first number doesn’t answer or is busy, dials next number
The AOR-IP Call Station is an indoor, hands-free ADA-compliant communication endpoint for use with the AOR-IP Series System in an area of rescue assistance.
- Fully compliant with IBC, ADAAG, ICC A117.1 Ch. 7, and NFPA 72
- Network supervision available when used in conjunction with IP supervisor (Model AOR-IP-SUP)
- Automatically plays back a recorded location message to the local IP Command Unit(not off-site)
- Auto-answers calls initiated at the IP Command Unit
- Exceptional sound clarity during conversation (over 85dB, configurable)
- Power over Ethernet (PoE, 802.3af) or local 19-27 VDC
- Vandal resistant stainless steel faceplate and metal button
- LED indicator for the hearing impaired
- Push button once to call, then speak hands-free
- Built-in auto-dialer can dial up to six numbers: if the first number doesn’t answer or is busy, dials next number
Area of Rescue 8-Channel Command Unit
Area of Refuge/Rescue (AOR) Command Unit (model AOR-8) is part of Talkaphone’s total AOR solution that accommodates up to 8 ADA-compliant Area of Refuge/Rescue stations.
- Accommodates up to 8 Area of Rescue stations
- AOR stations are powered by the command unit
- Command unit can route an emergency phone call to a 911 center or other designated location
It consists of a command unit, a selected number of AOR stations (flush or surface mounted), and AOR signage to accommodate the selected number of AOR stations. The ADA-compliant AOR stations are powered by the command unit using one twisted-shielded pair cable from each AOR station to the command unit.
When the user initiates an emergency call from an AOR station, a tone is heard to confirm the call has been placed and an LED light indicates the call has been received. At the same time, the command unit’s strobe starts flashing and the siren is initiated. If there are other callers on the line, the command unit receives and queues the call. Each queued emergency call is displayed as a flashing red light on the command unit, which can be labeled for easy location identification. AOR stations can also be programmed to play a location identifier message when a call is answered. An active call is displayed as solid red. The command unit’s siren deactivates when the call is answered by local fire personnel. The strobe will deactivate only when all emergency lines have been cleared. Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
The command unit can route an emergency phone call to a 911 center or other designated location via a TELCO line if no one is available to answer the call after an installer programmed amount of time. An uninterruptible power supply (UPS) is included to provide more than 4 hours of backup of the complete communications system.
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
https://talkaphone.com/area-of-rescue-resources-for-specifiers/
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations: line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate Stations that are waiting to be answered. When first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
- Siren is activated when Emergency call is first detected, shuts off when call has been answered
- Strobe is activated when Emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power back up in case of power failure
- Includes built-in phone
Area of Refuge/Rescue (AOR) Command Unit (model AOR-8) is part of Talkaphone’s total AOR solution that accommodates up to 8 ADA-compliant Area of Refuge/Rescue stations.
- Accommodates up to 8 Area of Rescue stations
- AOR stations are powered by the command unit
- Command unit can route an emergency phone call to a 911 center or other designated location
It consists of a command unit, a selected number of AOR stations (flush or surface mounted), and AOR signage to accommodate the selected number of AOR stations. The ADA-compliant AOR stations are powered by the command unit using one twisted-shielded pair cable from each AOR station to the command unit.
When the user initiates an emergency call from an AOR station, a tone is heard to confirm the call has been placed and an LED light indicates the call has been received. At the same time, the command unit’s strobe starts flashing and the siren is initiated. If there are other callers on the line, the command unit receives and queues the call. Each queued emergency call is displayed as a flashing red light on the command unit, which can be labeled for easy location identification. AOR stations can also be programmed to play a location identifier message when a call is answered. An active call is displayed as solid red. The command unit’s siren deactivates when the call is answered by local fire personnel. The strobe will deactivate only when all emergency lines have been cleared. Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
The command unit can route an emergency phone call to a 911 center or other designated location via a TELCO line if no one is available to answer the call after an installer programmed amount of time. An uninterruptible power supply (UPS) is included to provide more than 4 hours of backup of the complete communications system.
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
https://talkaphone.com/area-of-rescue-resources-for-specifiers/
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations: line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate Stations that are waiting to be answered. When first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
- Siren is activated when Emergency call is first detected, shuts off when call has been answered
- Strobe is activated when Emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power back up in case of power failure
- Includes built-in phone
Area of Rescue 24-Channel Command Unit
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
- Fully compliant with the IBC §1007, ADAAG §7, ICC A117.1, and NFPA 72 §24.5.3
- Accommodates up to 24 ADA compliant Area of Rescue Stations
- Stations are powered by Command Unit
- LEDs on Command Unit indicate calling Station and line status
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations: line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate Stations that are waiting to be answered. When first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Siren is activated when Emergency call is first detected, shuts off when call has been answered
- Strobe is activated when Emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power back up in case of power failure
- Includes built-in phone
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
- Fully compliant with the IBC §1007, ADAAG §7, ICC A117.1, and NFPA 72 §24.5.3
- Accommodates up to 24 ADA compliant Area of Rescue Stations
- Stations are powered by Command Unit
- LEDs on Command Unit indicate calling Station and line status
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations: line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate Stations that are waiting to be answered. When first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Siren is activated when Emergency call is first detected, shuts off when call has been answered
- Strobe is activated when Emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power back up in case of power failure
- Includes built-in phone
Self-Adhesive Area of Refuge Sign
Talkaphone’s ETP-SIGN-R Self-Adhesive Sign designates a location as an Area of Refuge and aids in locating an emergency phone. The sign features raised lettering and Braille for ADA compliance and can be easily affixed to a wall.
- Sign is self-adhesive to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate
Talkaphone’s ETP-SIGN-R Self-Adhesive Sign designates a location as an Area of Refuge and aids in locating an emergency phone. The sign features raised lettering and Braille for ADA compliance and can be easily affixed to a wall.
- Sign is self-adhesive to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate
Deluxe Lighted Area of Rescue Assistance Sign
Talkaphone’s ETP-SIGN/LD Deluxe Lighted Sign designates a location as an Area of Rescue Assistance and aids in locating an emergency phone. The sign features an architectural slim design to fit into any environment.
- Lighted sign is attractive and attention-getting
- Includes battery backup in case of power failure
- Aids with ADA compliance
- High intensity red LEDs
- Attractive aluminum extrusion design
- High clarity, optically true acrylic panels
Talkaphone’s ETP-SIGN/LD Deluxe Lighted Sign designates a location as an Area of Rescue Assistance and aids in locating an emergency phone. The sign features an architectural slim design to fit into any environment.
- Lighted sign is attractive and attention-getting
- Includes battery backup in case of power failure
- Aids with ADA compliance
- High intensity red LEDs
- Attractive aluminum extrusion design
- High clarity, optically true acrylic panels
Lighted Area of Rescue Assistance Sign
Talkaphone’s ETP-SIGN/L Lighted Sign designates a location as an Area of Rescue Assistance and aids in locating an emergency phone. The sign features high intensity red LEDs providing bright and uniform illumination, while offering durability and strength in a 20 gauge steel enclosure.
- Sign is self-adhesive to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate
Talkaphone’s ETP-SIGN/L Lighted Sign designates a location as an Area of Rescue Assistance and aids in locating an emergency phone. The sign features high intensity red LEDs providing bright and uniform illumination, while offering durability and strength in a 20 gauge steel enclosure.
- Sign is self-adhesive to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate

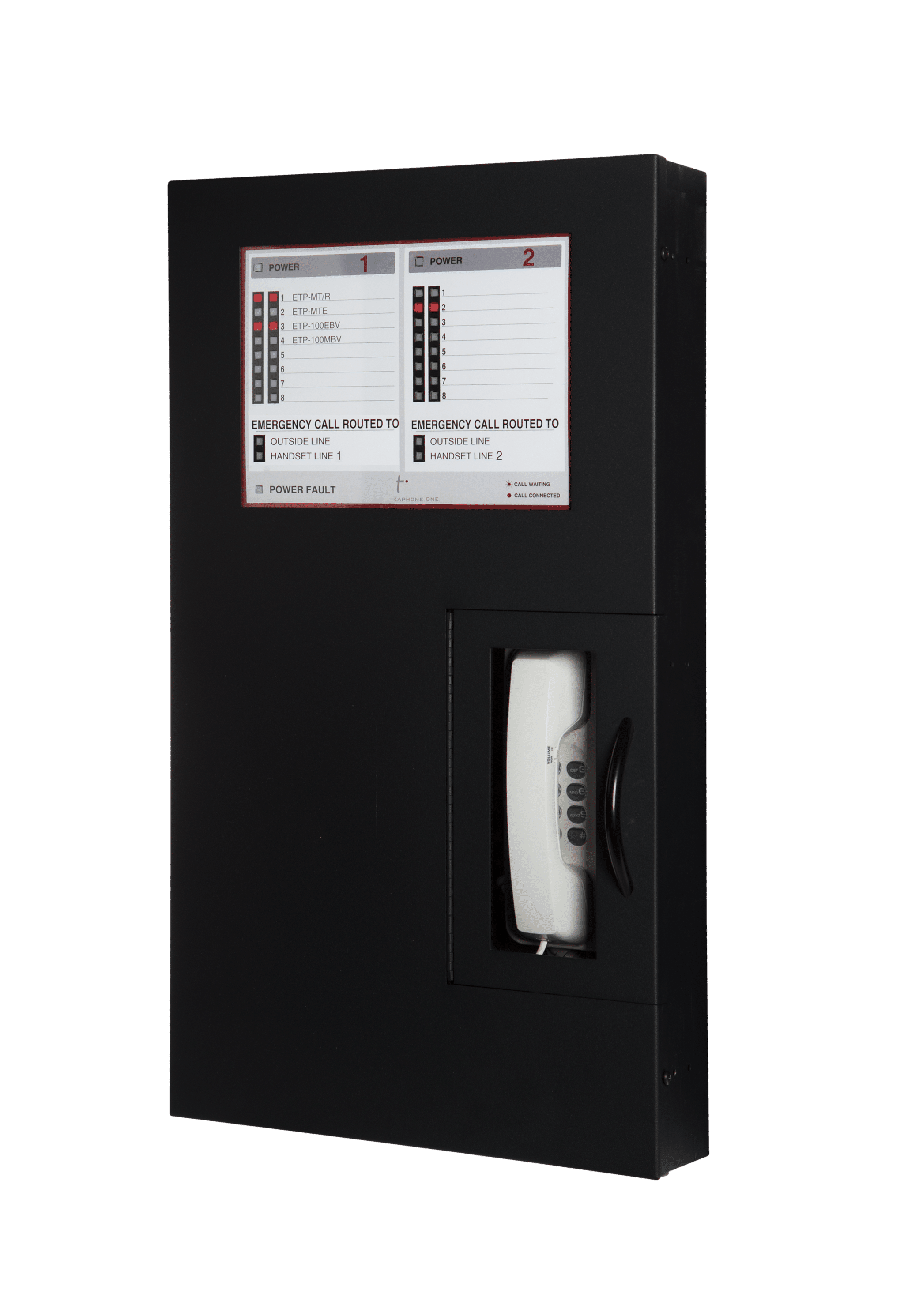

Area of Refuge 16 Channel Command Unit
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations (AOR-16 requires 2 phone lines): line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate Stations that are waiting to be answered. When first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a AOR Series Command Unit.
- Siren is activated when Emergency call is first detected, shuts off when call has been answered
- Strobe is activated when Emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power back up in case of power failure
- Includes built-in phone
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations (AOR-16 requires 2 phone lines): line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate Stations that are waiting to be answered. When first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a AOR Series Command Unit.
- Siren is activated when Emergency call is first detected, shuts off when call has been answered
- Strobe is activated when Emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power back up in case of power failure
- Includes built-in phone

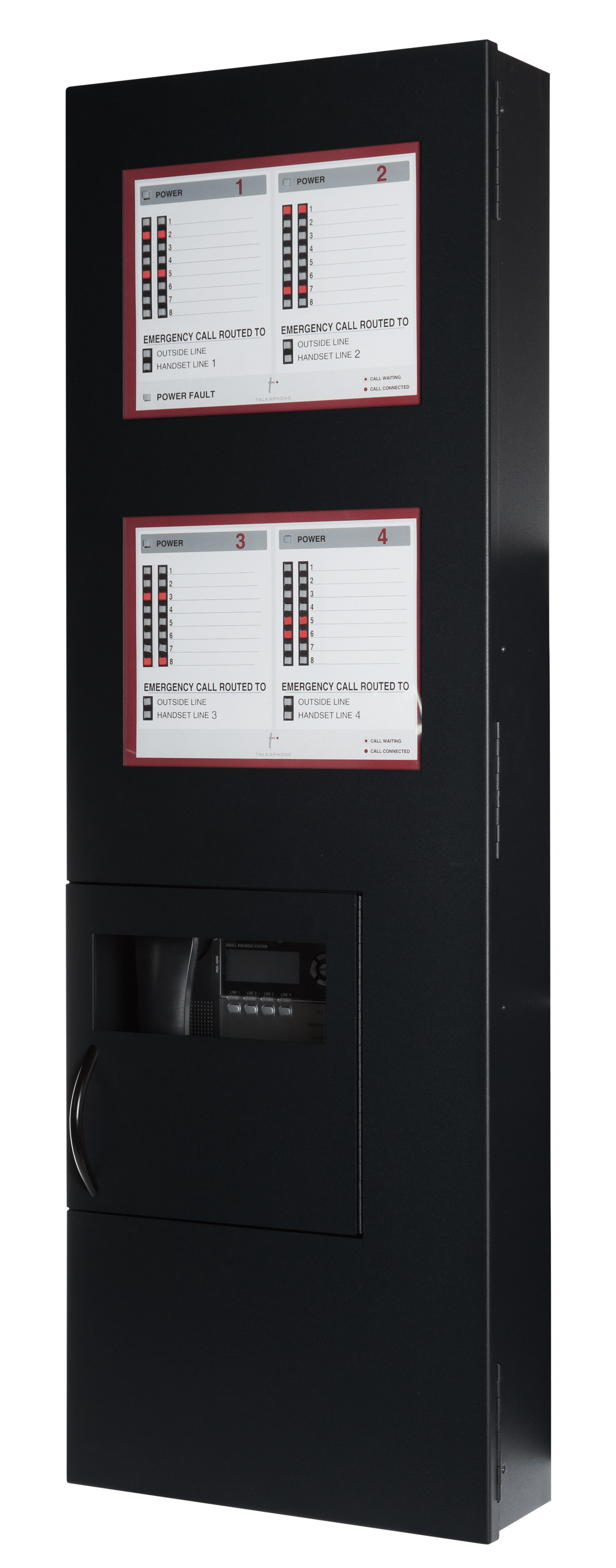

Area of Refuge 32 Channel Command Unit
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
- Fully compliant with the IBC §1007, ADAAG §7, ICC A117.1, and NFPA 72 §24.5.3
- Accommodates up to 32 ADA compliant Area of Rescue stations
- Stations are powered by command unit
- LEDs on command unit indicate calling station and line status
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations: line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate stations that are waiting to be answered. When the first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Siren is activated when emergency call is first detected, shuts off when call has been answered
- Strobe is activated when emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power backup in case of power failure
- Includes built-in phone
The information on this page applies only to Revision 2.0 of the AOR-8 / AOR-16 / AOR-24 / AOR-32 models. For Revision 1.0 documentation, please visit:
- Fully compliant with the IBC §1007, ADAAG §7, ICC A117.1, and NFPA 72 §24.5.3
- Accommodates up to 32 ADA compliant Area of Rescue stations
- Stations are powered by command unit
- LEDs on command unit indicate calling station and line status
- Includes hardware to detect short/open conditions on cabling for each area of rescue station. With this update, the system will also recognize a general ground fault condition. Such trouble conditions will be annunciated and visually indicated at the AOR Series Command Unit.
- On-site calling requires no outside phone lines
- Off-site calling requires only one phone line for up to 8 Stations: line seizure eliminates need for dedicated phone line
- Blinking LEDs indicate stations that are waiting to be answered. When the first call is completed, 2nd call is automatically placed, phone rings and strobe/siren is activated
- Siren is activated when emergency call is first detected, shuts off when call has been answered
- Strobe is activated when emergency call is first detected and remains active for duration of call
- Built-in UPS provides 4-hour power backup in case of power failure
- Includes built-in phone
Self-Adhesive Push for Help Instruction Sign
Talkaphone’s ETP-SIGN-PFH Area of Refuge Instruction Sign designates a location as an Area of Rescue Assistance and aids in locating emergency phones.
- Sign is self-adhesive to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate
Talkaphone’s ETP-SIGN-PFH Area of Refuge Instruction Sign designates a location as an Area of Rescue Assistance and aids in locating emergency phones.
- Sign is self-adhesive to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate
Self-Adhesive Area of Rescue Sign
Talkaphone’s ETP-SIGN Self-Adhesive Sign designates a location as an Area of Rescue and aids in locating an emergency phone. The sign features raised lettering and Braille for ADA compliance and can be easily affixed to a wall.
- Self-adhesive sign to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate
Talkaphone’s ETP-SIGN Self-Adhesive Sign designates a location as an Area of Rescue and aids in locating an emergency phone. The sign features raised lettering and Braille for ADA compliance and can be easily affixed to a wall.
- Self-adhesive sign to mount easily on a wall
- Raised lettering and Braille for ADA compliance
- Constructed of ultra-violet light-resistant polycarbonate
Fixed 5-Station Analog Area of Rescue Command Unit
• Automatically and continuously supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail—alerts by relay output to an addressable fire panel, LED, and sounder
• On-site calling requires no outside phone line
• Off-site calling requires one (1) analog phone line (PSTN line)
• Solid LED indicates active call. Flashing LEDs indicate stations that are waiting to be answered. When first call is completed, second call is automatically placed and Command Unit rings. Multiple calls are placed in queue on a “first-in, first-out (FIFO)” basis.
• Automatically and continuously supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail—alerts by relay output to an addressable fire panel, LED, and sounder
• On-site calling requires no outside phone line
• Off-site calling requires one (1) analog phone line (PSTN line)
• Solid LED indicates active call. Flashing LEDs indicate stations that are waiting to be answered. When first call is completed, second call is automatically placed and Command Unit rings. Multiple calls are placed in queue on a “first-in, first-out (FIFO)” basis.
Fixed 10-Station Analog Area of Rescue Command Unit
• Automatically and continuously supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail—alerts by relay output to an addressable fire panel, LED, and sounder
• On-site calling requires no outside phone line
• Off-site calling requires one (1) analog phone line (PSTN line)
• Solid LED indicates active call. Flashing LEDs indicate stations that are waiting to be answered. When first call is completed, second call is automatically placed and Command Unit rings. Multiple calls are placed in queue on a “first-in, first-out (FIFO)” basis.
• Automatically and continuously supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail—alerts by relay output to an addressable fire panel, LED, and sounder
• On-site calling requires no outside phone line
• Off-site calling requires one (1) analog phone line (PSTN line)
• Solid LED indicates active call. Flashing LEDs indicate stations that are waiting to be answered. When first call is completed, second call is automatically placed and Command Unit rings. Multiple calls are placed in queue on a “first-in, first-out (FIFO)” basis.
You’ve viewed - of - products
