Area of Refuge - Up to 10 Stations
Area of Refuge

Up to 10 Stations

Up to 10 Stations

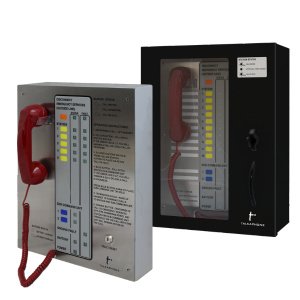

Talkaphone's Area of Refuge (AOR) systems for up to 10 stations provide two-way emergency communication from either an elevator landing or stairway to the fire command center.

These systems are fully compliant with the requirements of:

  • NFPA 72 (2022) §24.10
  • IBC (2021) §1009
  • ICC A117.1 (2017) Ch. 7
  • ADAAG (2010) Ch. 7

In compliance with these requirements, these systems automatically and continuously supervise for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail—alerts by sounder, LED, and relay output to an addressable fire panel.



FIXED STATION ANALOG AOR CHART

Model Series (A)
Station Count Support		 (B)
Form Factor		 (C)
Latch (only for -D configurations)
Model Series AOR (A)
Station Count Support		 -5
Supports up to five (5) stations

-10
Supports up to ten (10) stations

 (B)
Form Factor		 [Leave Blank]
Standard enclosure without door

-D
Enclosure with door

 (C)
Latch (only for -D configurations)		 [Leave Blank]
Standard enclosure without door and latch

SL
Standard twist latch

KL
Keyed latch
