Mass Notification

Call Stations

Call Stations

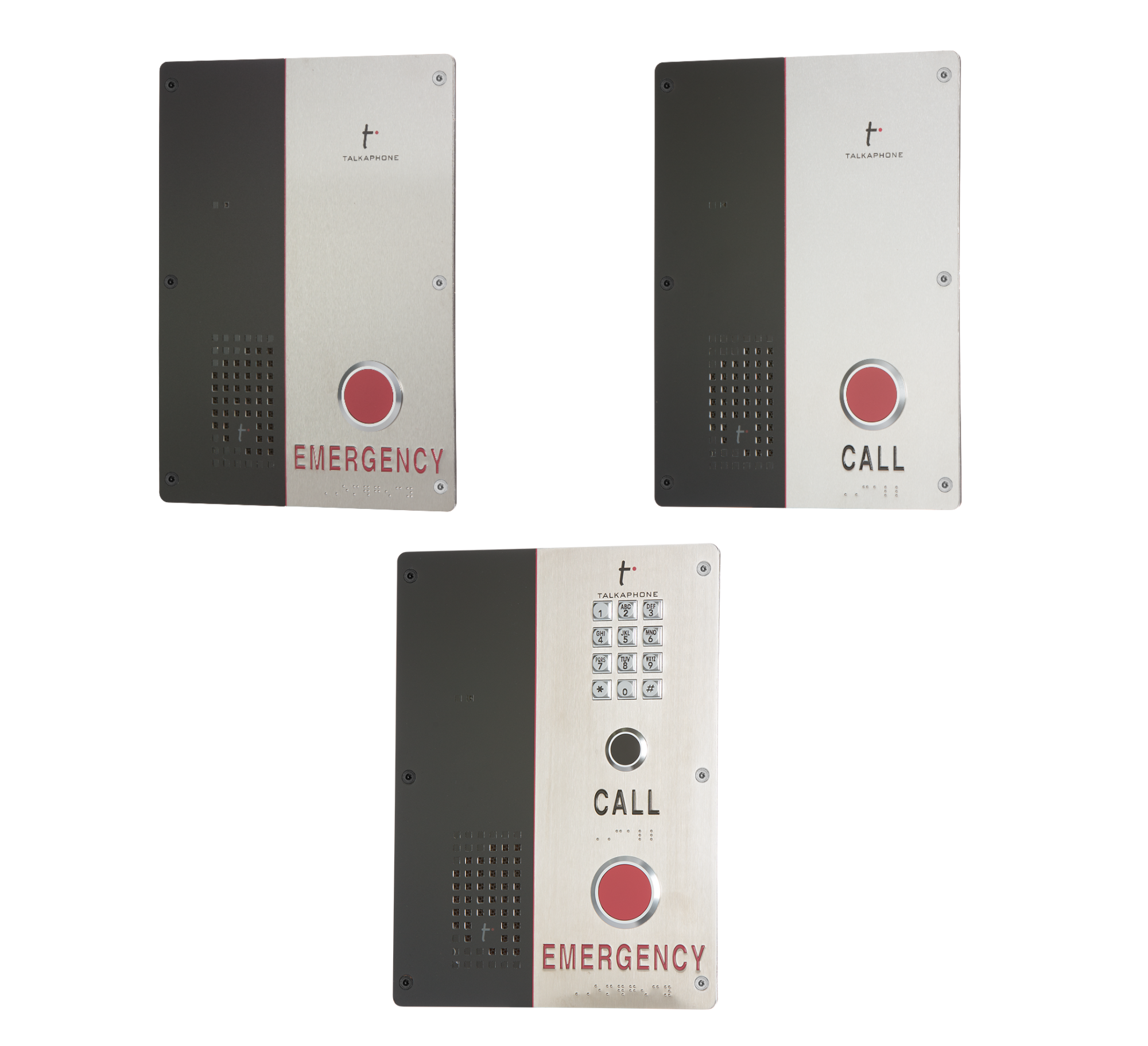

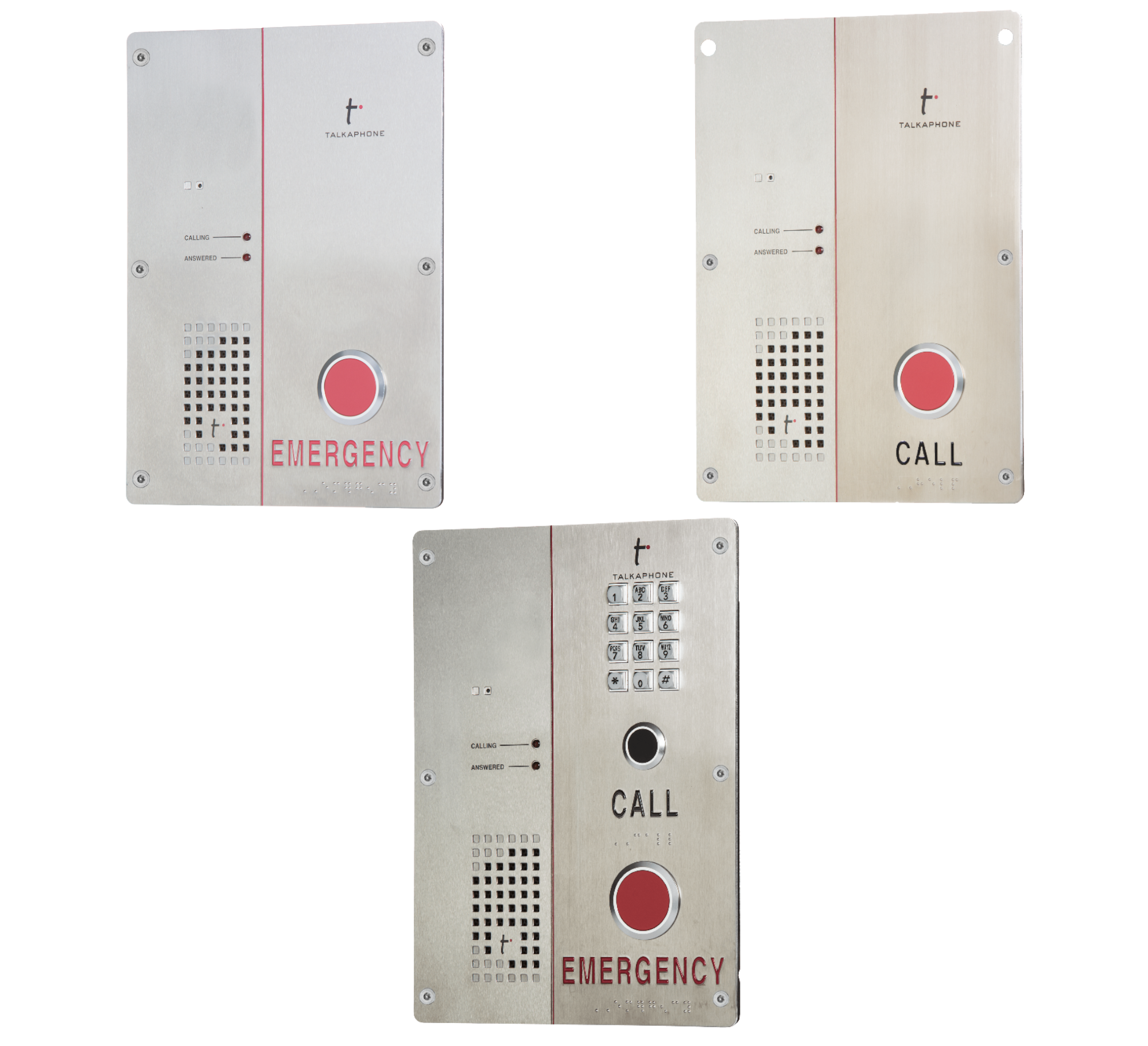

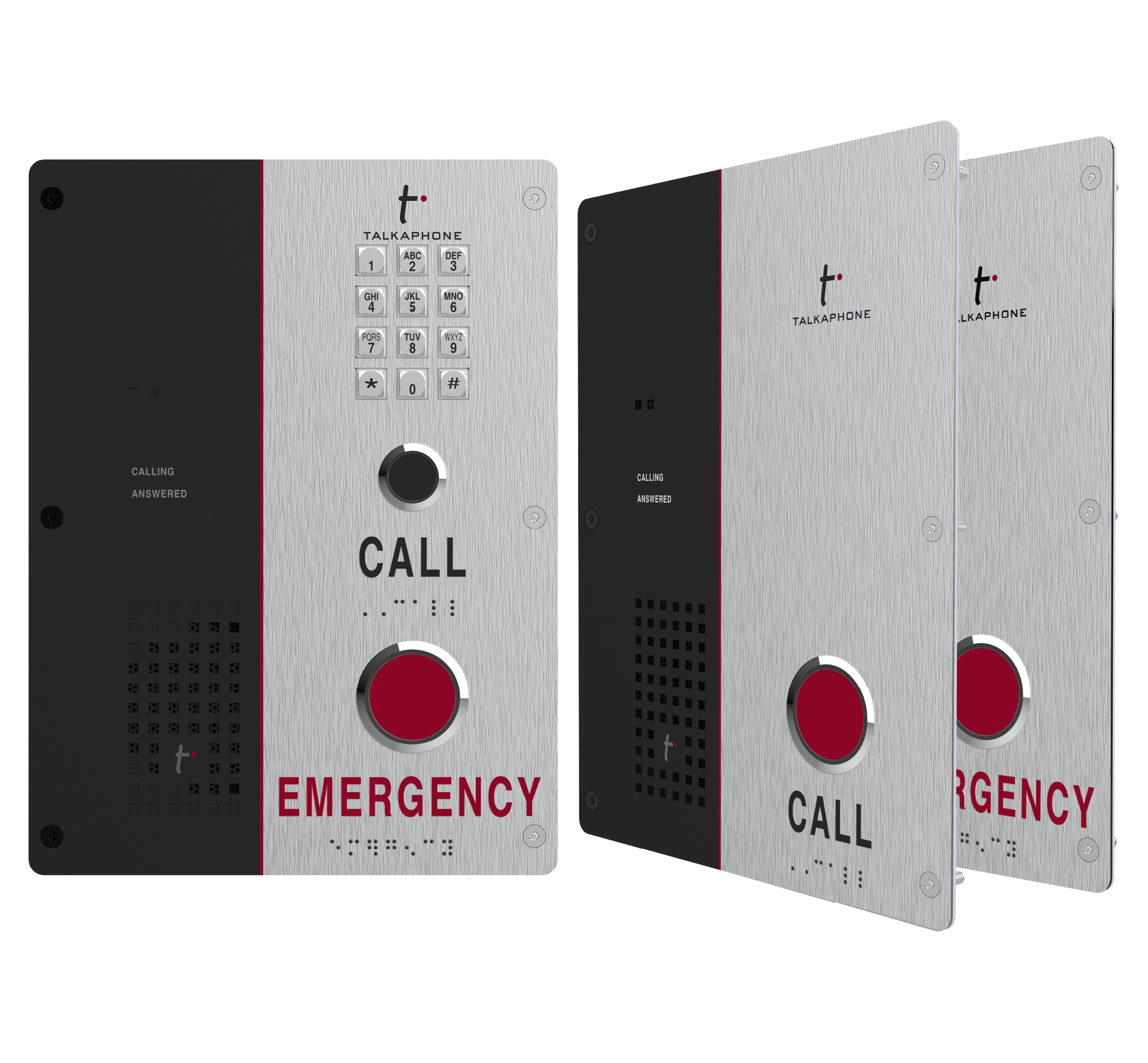

VOIP-500 and VOIP-600 Series IP Call Stations go beyond two-way emergency communication and can serve as an intelligible audio paging endpoint--supporting either dial-in paging or Singlewire InformaCast in an emergency mass notification system.

  • Exceptional sound clarity during conversation (over 90dB, configurable) and paging (over 100dB, configurable)
  • VOIP-500/VOIP-600 IP Call Stations can be paged remotely as a Singlewire Informcast IP Speaker--capable of alerting a community through Cisco IP phones or by placing an inbound call into the unit
  • Supports standard SIP protocol
new iconAsset 13
INTRODUCING

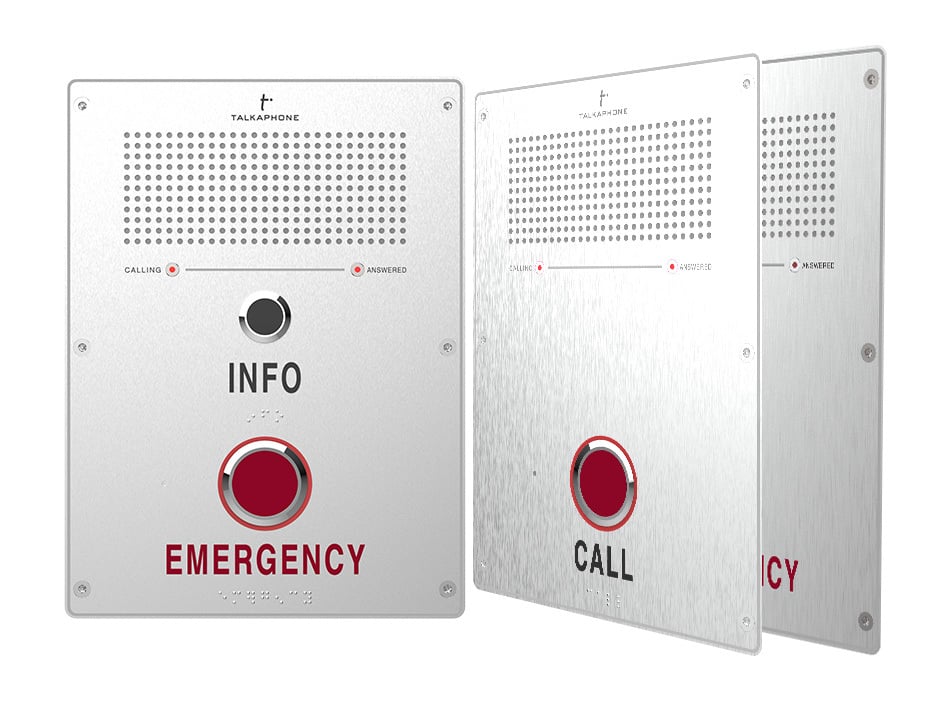

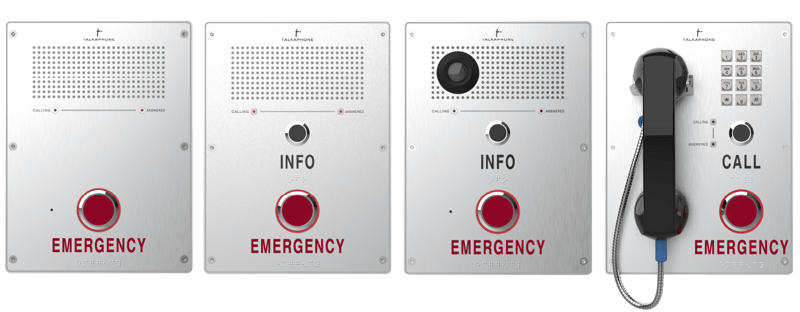

VOIP-700 Series Call Stations

VOIP-700 Call Stations Asset 15

Meet the next generation of emergency and information communications. The new Talkaphone VOIP-700 Series combines cloud-native VoIP architecture, enhanced security, VLAN support, and simplified deployment in one powerful call station. With native support for platforms like Microsoft Teams and Zoom, the VOIP-700 is built to connect with the technology organizations already use, while delivering the reliable communication you expect from Talkaphone.





Call Station Comparison Table

Feature Benefit VOIP-700 Series VOIP-600 Series VOIP-500 Series VOIP-220 Series ETP-520 Series
Feature Multicast Benefit VOIP-700 Series
  • Audio paging
 VOIP-600 Series ● VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series N/A N/A
Feature Optimized for EZinfo™ Benefit VOIP-700 Series
  • Conversational AI
 VOIP-600 Series ● VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series N/A N/A
Feature VLAN Support Benefit VOIP-700 Series
  • Enables network segmentation for improved security, traffic management, and performance
 VOIP-600 Series ● VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series N/A N/A
Feature Cloud Native VOIP Architecture Benefit VOIP-700 Series
  • Simplifies integration with modern cloud-based communication platforms
 VOIP-600 Series ● VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series N/A N/A
Feature Enhanced Security Benefit VOIP-700 Series
  • Helps safeguard network communications and device access
 VOIP-600 Series ● VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series N/A N/A
Feature Non-Volatile Flash Memory Programming and Configuration Benefit
  • Through web GUI or Windows-based administration tool
 VOIP-700 Series ● VOIP-600 Series N/A VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series N/A
Feature Analog Telephone Line Support Benefit
  • Telephone line powered—local battery backup not required, only provide backup power to phone system or service provider equipment
 VOIP-700 Series N/A VOIP-600 Series N/A VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series ●
Feature Ethernet (IP) Support Benefit
  • Leverages modern Ethernet network infrastructure
 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series N/A
Feature Session Initiation Protocol (SIP) Support Benefit
  • Compatible with most SIP-enabled PBX platforms (e.g., Alcatel-Lucent, Avaya, Cisco, Grandstream, Mitel)
 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series N/A
Feature Powered by Analog Telephone Line Benefit
  • Telephone line powered—local battery backup not required, only provide backup power to phone system or service provider equipment
    		 VOIP-700 Series N/A VOIP-600 Series N/A VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series ●
    Feature Power over-Ethernet (PoE) Support Benefit
    • Consolidates data and power cabling to a single cable (up to 100 meters)
    		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series N/A
    Feature 12/24 VDC or 24VAC Power Supply Support Benefit
    • Supports a local regulated low voltage power supply
    		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series N/A
    (24VDC only)    		 ETP-520 Series N/A
    Feature Primary Push Button Benefit
    • Prominent 1.375-inch push button for use by a person in distress
    		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series ●
    Feature Secondary Push Button Benefit
    • Smaller 0.78-inch push button for non-emergency situations
    		 VOIP-700 Series ○ VOIP-600 Series ○ VOIP-500 Series ○ VOIP-220 Series ○ ETP-520 Series ○
    Feature Keypad Benefit
    • Provides capability for manual dialing or additional speed dial keys
    		 VOIP-700 Series ○ VOIP-600 Series ○ VOIP-500 Series ○ VOIP-220 Series ○ ETP-520 Series N/A
    Feature Half-duplex Hands-free Communication Benefit
    • Compatible with analog telephone line power
      		 VOIP-700 Series N/A VOIP-600 Series N/A VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series ●
      Feature Full Duplex Hands-free Communication Benefit
      • Full simultaneous audio during a telephone call
        		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series N/A
        Feature Handset Only Communication Benefit
        • Enables private conversations
        • Suitable for environments where hands-free communication is not feasible
        		 VOIP-700 Series ○ VOIP-600 Series ○ VOIP-500 Series ○ VOIP-220 Series N/A ETP-520 Series N/A
        Feature Combination Hands-free/Handset Benefit
        • Enables switching between public and private conversations
        • Suitable for environments where hands-free communication is sometimes feasible
        		 VOIP-700 Series ○ VOIP-600 Series N/A VOIP-500 Series ○ VOIP-220 Series N/A ETP-520 Series N/A
        Feature Auxilary Input(s) Benefit
        • Enables a third-party system or device to trigger a phone call through a dry contact closure
        		 VOIP-700 Series ●
        Two (2) built-in        		 VOIP-600 Series ●
        Three (3) built-in        		 VOIP-500 Series ●
        Three (3) built-in        		 VOIP-220 Series N/A ETP-520 Series ○
        One (1) availablewith optionalETP-AUXIN-KIT
        Feature Auxilary Output(s) Benefit
        • Provides a dry contact closure to trigger a blue light to flash or to a third-party system (access control, camera, etc.)
        		 VOIP-700 Series ●
        Three (3) built-in        		 VOIP-600 Series ●
        Three (3) built-in        		 VOIP-500 Series ●
        Three (3) built-in        		 VOIP-220 Series ●
        One (1) built-in        		 ETP-520 Series ●
        Two (2) built-in
        Feature Marine Grade 316 Stainless Steel Faceplace Benefit
        • Vandal resistant and robust design
        • Weather-resistant
        		 VOIP-700 Series ● VOIP-600 Series N/A
        (Brushed 316 stainless steel signage panel on the right with UV resistant Polyethylene Terephthalate (PET) dead-front signage panel on the left)        		 VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series ●
        Feature IP66 Construction Benefit
        • Weather-resistant
        		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series N/A
        Feature Raised Letter/Braille Signage Benefit
        • ADA compliant
        • Compliant with the International Building Code (IBC), ADAAG, and ICC A117.1
        		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series ●
        Feature Dedicated Call Status LEDs Benefit
        • Conveys the status of the call to the hearing impaired through dedicated LEDs for “CALLING” and “ANSWERED”
        		 VOIP-700 Series ● VOIP-600 Series N/A VOIP-500 Series ● VOIP-220 Series N/A
        (One (1) dual-purpose LED for “CALLING” and “ANSWERED”)        		 ETP-520 Series ●
        Feature Backlit Dead-front Call Progress Signage Benefit
        • Conveys the status of the call to the hearing impaired through backlit signage for “CALLING”, “ANSWERED”, and “HELP ON THE WAY”
        		 VOIP-700 Series N/A VOIP-600 Series ● VOIP-500 Series N/A VOIP-220 Series N/A ETP-520 Series N/A
        Feature Autodials Phone Numbers Benefit
        • • Dials phone numbers in round robin fashion in the event an answering point does not answer or is busy
        		 VOIP-700 Series ●
        Up to six (6) phone numbers        		 VOIP-600 Series ●
        Up to six (6) phone numbers        		 VOIP-500 Series ●
        Up to six (6) phone numbers        		 VOIP-220 Series ●
        Up to six (6) phone numbers        		 ETP-520 Series ●
        Up to two (2) phone numbers
        Feature Voice Message Benefit
        • Identifies physical location of call station through a prerecorded voice message
        		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series ●
        Feature IP Camera Option Benefit
        • Captures video surveillance for call station activation from pre-roll (i.e. person approaching call station) to end of event
        • Camera is a separate IP device—allowing for greater flexibility with video management systems or network video recorders
        		 VOIP-700 Series ○ VOIP-600 Series ○ VOIP-500 Series ○ VOIP-220 Series ○ ETP-520 Series ○
        Feature Mass Notification Benefit
        • Receive Wide-Area Emergency Broadcast System (WEBS®) audio notifications during an event
        • Built-in hands-free speaker provides output to areas requiring less coverage
        • Line level output enables alerting of a larger public area
          		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series N/A ETP-520 Series N/A
          Feature Limited Warranty Benefit
          • 2-year limited warranty
          		 VOIP-700 Series ● VOIP-600 Series ● VOIP-500 Series ● VOIP-220 Series ● ETP-520 Series ●
          ● = Standard○ = Option available N/A = Not Available
          Download Comparison Table
